Use for
Use the Natutec Vegetable Frame for the distribution of natural enemies in high-wire crops. The Natutec Vegetable Frame can be used for field distribution on two sides of the path. It is equipped with a protection ring around the frame to avoid damage of the high-wires and crops.
How it works
Mode of action

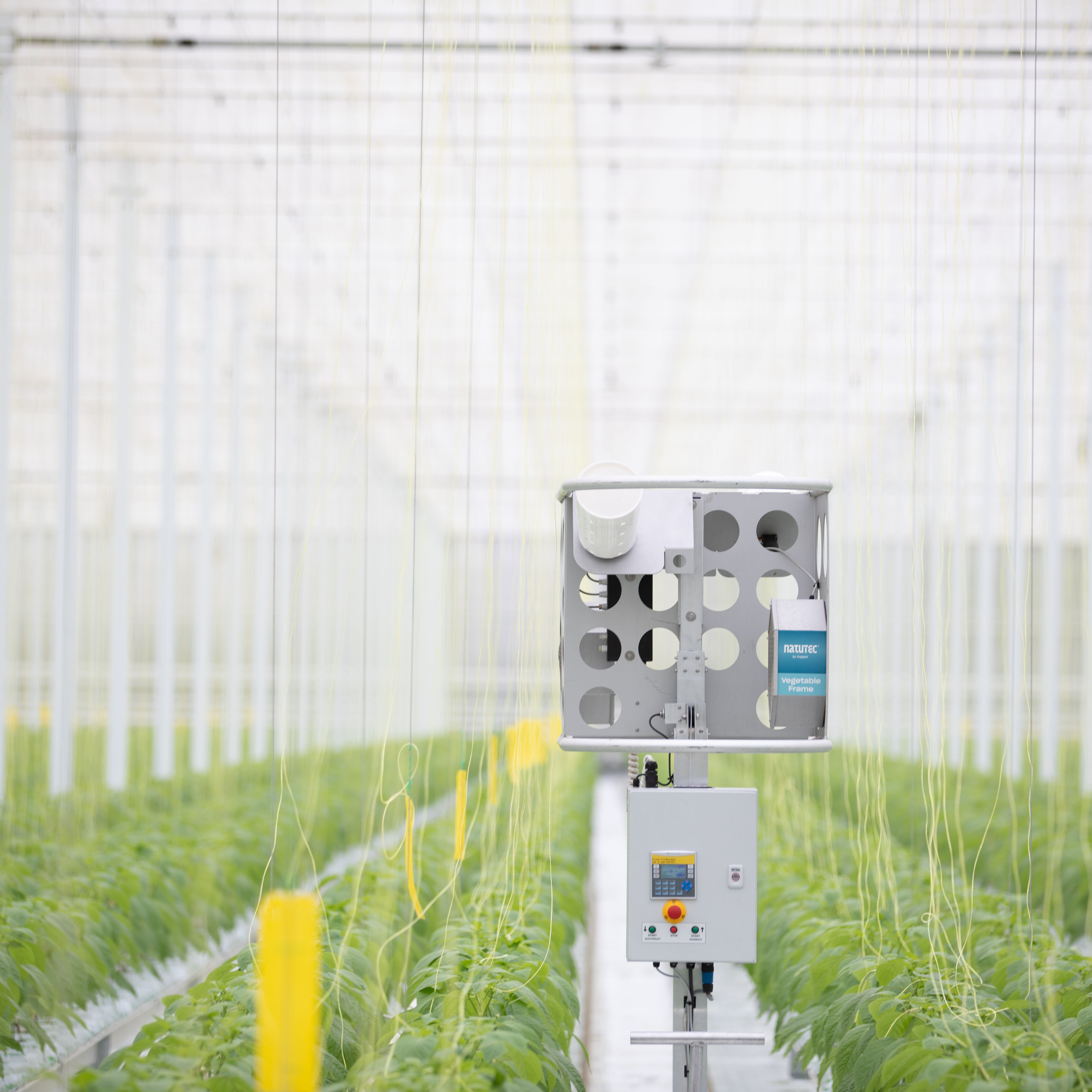

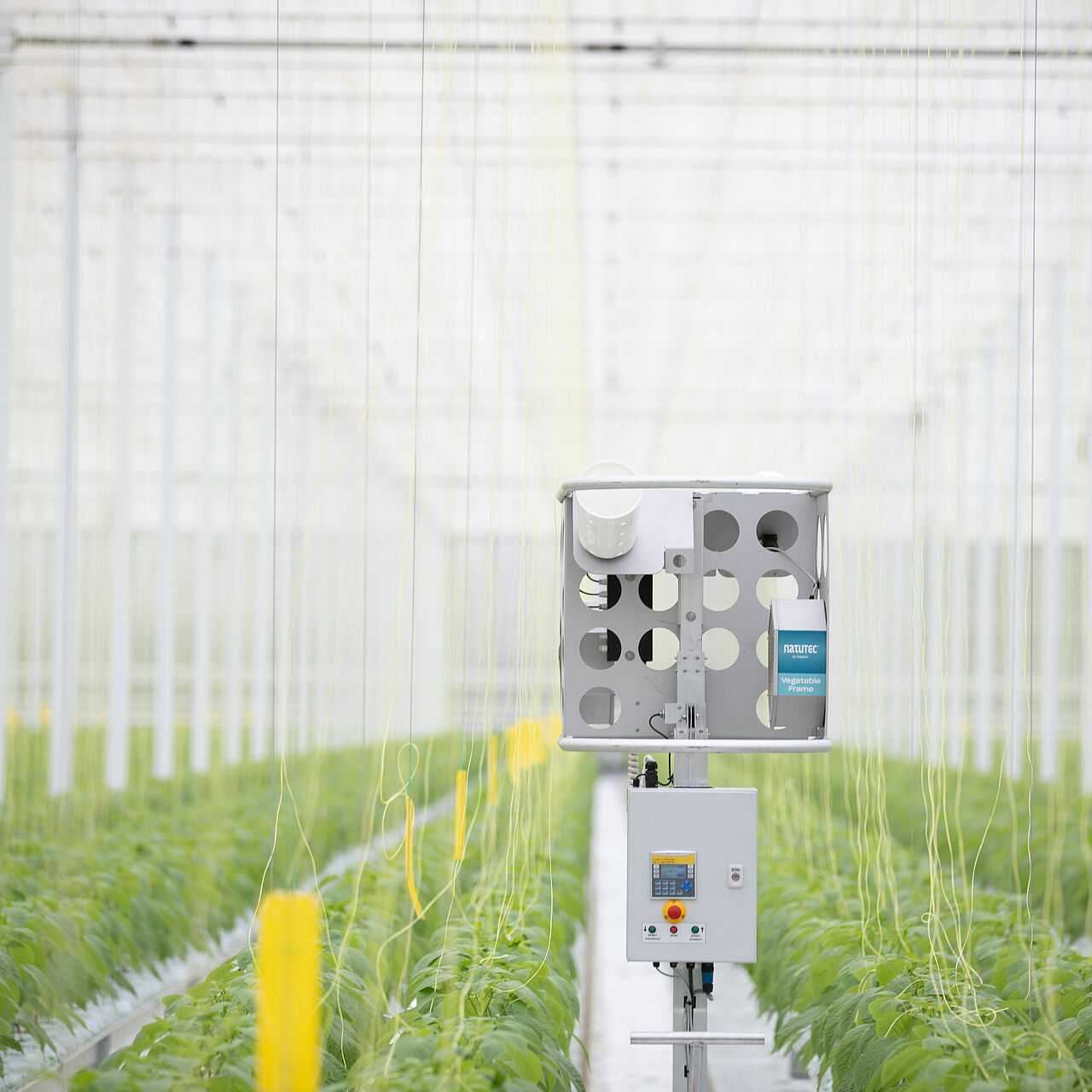

The Natutec Vegetable Frame is mounted on a picking truck. The innovative combination of two blowers, one on each side, ensures a uniform release of carrier material containing natural enemies. The airflow from the fan guarantees a uniform distribution of this material up to a distance of 2*4 metres from the Natutec Vegetable Frame. The protection ring around the frame, protects all the high-wires cultivation and cables in the field.
Product specifications
Product components

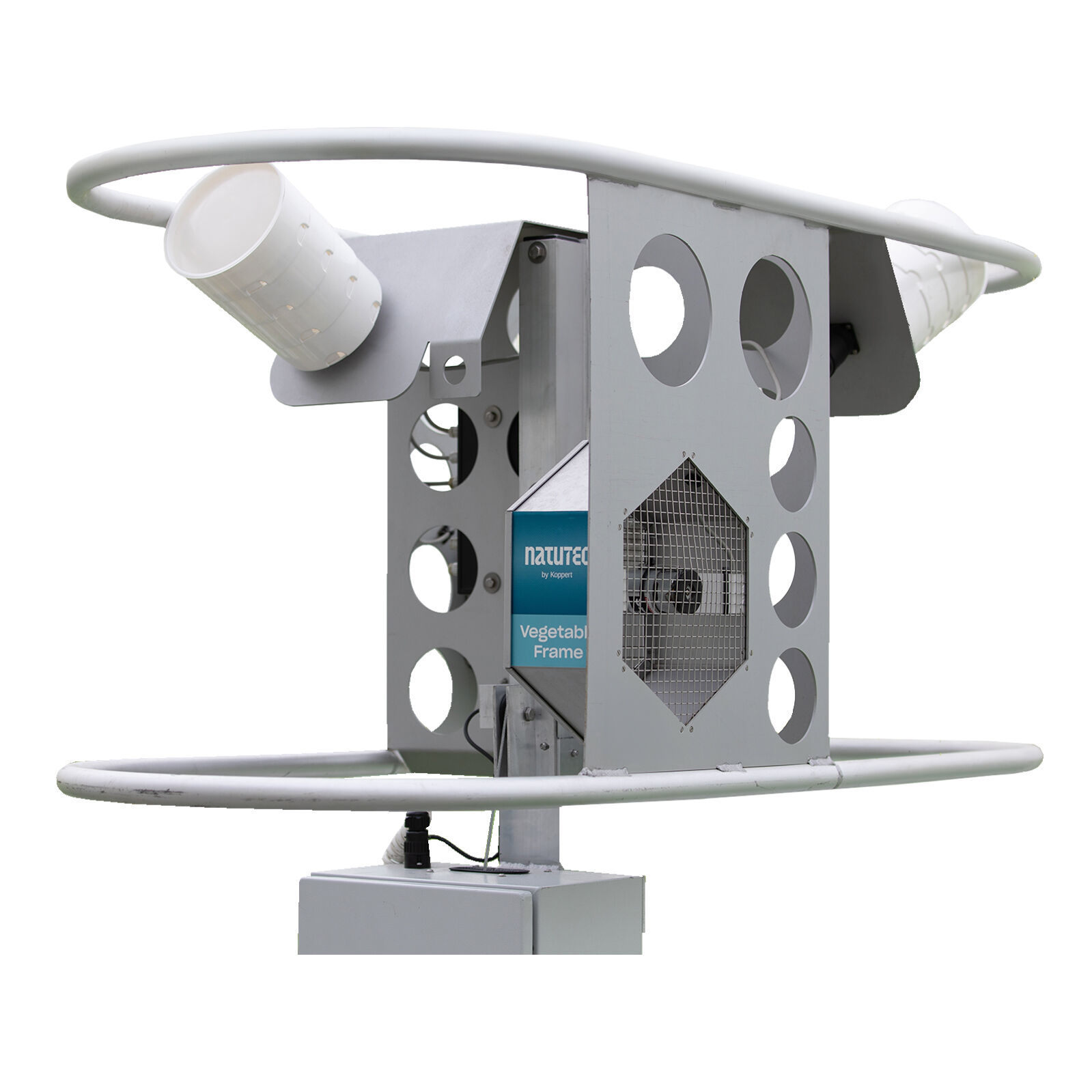

The Natutec Vegetable Frame consists of the following components:
- Two blowing devices on a standard which can be mounted on a picking truck
- One protection ring to protect all the plant-wires and cables
- Battery (24 Volt) with charger (the battery of the picking truck can also be used)
- Two adjustable dosing pots and an adjustable mixing pot
- Ear protector and mask
Volume of dosing pot/drum
3 litres.
Range
8 metres (4 metres on both sides).
Directions for use
Application
- Secure the Natutec Vegetable Frame on the picking truck
- Select the required dosing pots
- Adjust the size of the holes to the required dosage based on the information provided in the table on the underside of the pot
- Fill the dosing pots with the material to be released and close the lid
- Place the fully charged battery or connect the vegetable frame to the battery of the picking truck
- Connect the cable to the battery
- Attach the dosing pots to the revolving head of the blowers
- Turn on the switch of the Natutec Vegetable frame to start releasing the material
- Drive the picking truck over the path
Product handling
Storage conditions
Store the Natutec Vegetable Frame and accessories in a dry and dust-free area. The Natutec Vegetable Frame can be stored in the supplied case. Always charge the batteries after use and leave them plugged in.
